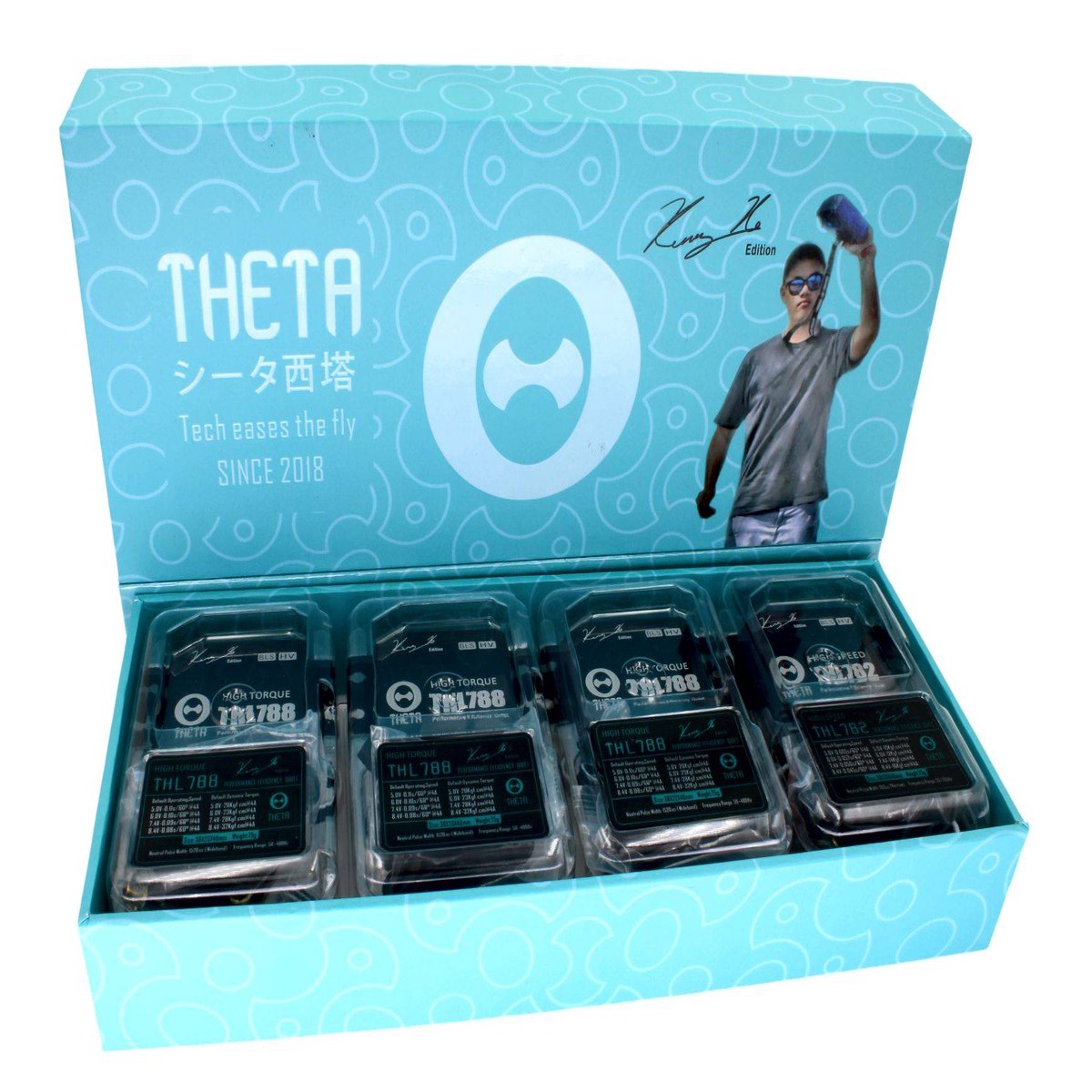

Theta Kenny Ko Edition HV Servo Set
Theta Kenny Ko Edition HV Servo Set
Includes 3 THL788 cyclic servos and a THL782 tail servo in the box. The servos were optimized in collaboration with the multiple-time world champion, Kenny Ko.Features:High VoltageHigh SpeedExcellent CenteringCompatible with Futaba type horns/armsLight WeightSpecifications:THL788 Cyclic Servo:Voltage (V)Current (A)Speed (s/60)Torque (kg*cm)5.040.11206.040.10237.440.09288.440.0832Neutral...
Includes 3 THL788 cyclic servos and a THL782 tail servo in the box. The servos were optimized in collaboration with the multiple-time world champion, Kenny Ko.
Features:
- High Voltage
- High Speed
- Excellent Centering
- Compatible with Futaba type horns/arms
- Light Weight
Specifications:
THL788 Cyclic Servo:
| Voltage (V) | Current (A) |
Speed (s/60) |
Torque (kg*cm) |
|
5.0 |
4 |
0.11 |
20 |
|
6.0 |
4 |
0.10 |
23 |
|
7.4 |
4 |
0.09 |
28 |
|
8.4 |
4 |
0.08 |
32 |
Neutral Pulse Width: 1520 usFrequency Rage: 50-400 Hz
THL782Tail Servo:
| Voltage (V) | Current (A) |
Speed (s/60) |
Torque (kg*cm) |
|
5.0 |
4 |
0.065 |
10 |
|
6.0 |
4 |
0.057 |
12 |
|
7.4 |
4 |
0.050 |
14 |
|
8.4 |
4 |
0.045 |
16 |
Neutral Pulse Width:760 usFrequency Rage: 50-700 Hz
